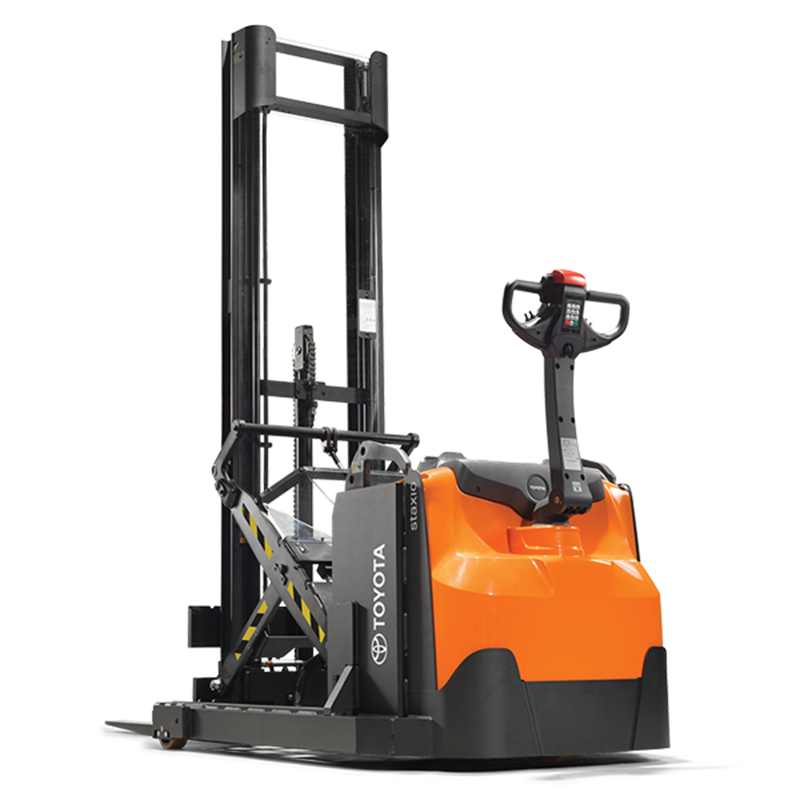

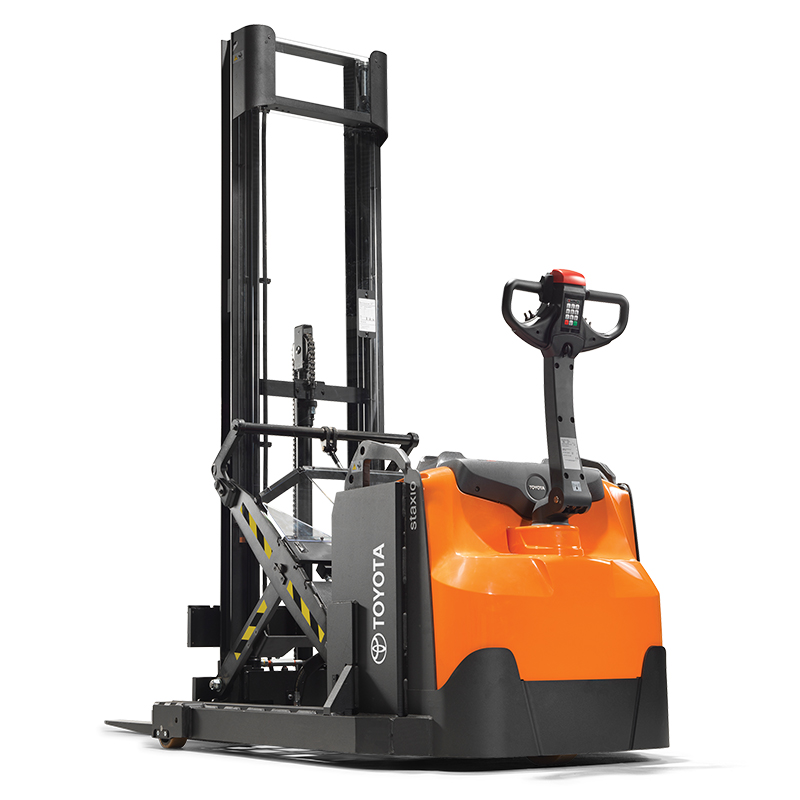

Toyota Staxio SWE120XR Walkie Reach Stacker Forklift

1,200 kg
5,400 mm
2,528 mm

1200 kg
5400 mm
2528 mm

at a glance

Up to 1,200 capacity
Indoor use
Comfortable all day use
Concrete, Bitumen, Paved, Tiled

LIFTS 1,200 KG
UP TO 5,400 mm
AISLE WIDTH 2,528 mm

ENQUIRE

SWE120XR Walkie Stacker

The Toyota SWE120XR walkie reach stacker with retractable mast combines the compact size of a walkie stacker with the flexibility of a reach truck.

Equipped with retractable masts and the ability to handle different types of pallets, these powered walkie stacker trucks are designed to save space and increase efficiency.

Featuring a tight turning radius, power steering as standard and retractable mast, the SWE120XR walkie reach stacker is a flexible space-saving solution that is ideal for use in narrow aisles and cold storage applications.

(Overseas model shown in video. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

PRODUCTIVITY
- Toyota's Optimised Truck Performance (OTP) technology controls acceleration, braking and steering depending on speed.
- Click-2-Creep function enables the driver to operate the walkie stacker with the arm in an upright position at very low speeds, improving driveability in confined areas.
- The mast tilt range of 1.2 degrees forwards and 1.8 degrees backwards makes it easier to manoeuvre loads in narrow aisles and access loads in hard-to-reach racking.
- The Sensi-lift function enables precise load handling and reduces the risk of goods being damaged. All driver controls are located on the tiller arm to enable smooth and accurate control.
- The Toyota SWE120XR walkie reach stacker can handle a mix of pallet types up to 5.4 meters with a triplex mast, with the option of fitting a sideshift or fork positioner.
PRODUCTIVITY
- 180-degree power steering
- Permanently mounted AC drive motor
- Mast position sensor
- Controlled reach speeds
- Secure PIN code access
- Soft start/stop function
- Toyota's I_Site forklift fleet management and monitoring system is also optionally available
SAFETY
- Standard safety features include emergency stop switch, tiller arm safety button, slope control, access control and automatic switch off.
RELIABILITY
- Like all Toyota forklifts, the Toyota Staxio range of walkie stackers is built according to the famous Toyota Production System, assuring the highest levels of quality, durability and reliability.
