Hand Pallet Jacks

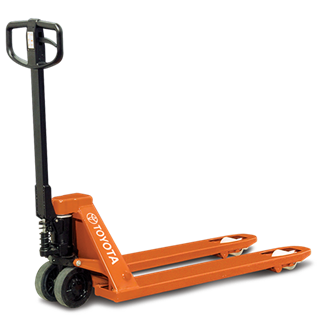

Toyota Quick Lifter Hand Pallet Jack

  • LIFTS
    3,000 kg
  • UP TO
    200 mm
  • AISLE WIDTH
    1,790 mm
  • img Between 2,300 - 3,000kgs
  • img Indoor and outdoor use
  • img Suitable for all day use
  • img Concrete, Bitumen, Paved, Carpet, Tiled, Indoor / Outdoor
BUY ONLINE
ENQUIRE

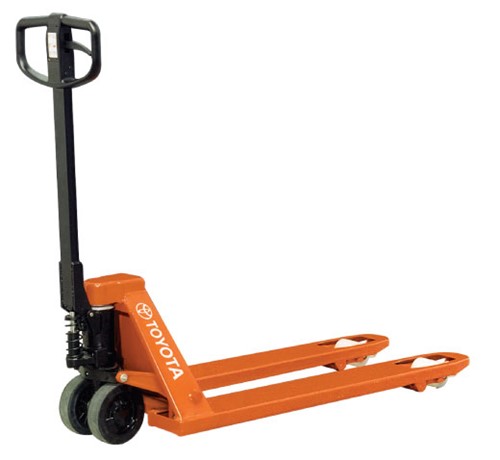

Quick Lifter Hand Pallet Jack

  • The Toyota Quick Lifter hand pallet jack has all the features you would expect from the world's largest manufacturer of forklifts.
  • Quick Lift function reduces the number of pump strokes needed to lift a load.
  • Rugged construction includes welded joints, a stainless steel lowering valve for a long trouble-free life and climber wheels for easy entry and exit from pallets.
  • Also features an angled high-strength polymer hand grip and twin-ball bearing steering mechanism. (Overseas model shown in video.
  • For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
  • The Toyota Quick Lifter hand pallet jack (LMH230) standard model is the universal hand pallet jack which can be used in most applications. This product has been designed to help increase the productivity and efficiency of lifting and moving loads up to 2,300 kilos. It features a robust chassis and 12 grease points in various parts of the truck.
  • The Toyota Quick Lifter is the ideal hand pallet jack for customer applications calling for high volumes of pallet movements every day. The forks reach the pallet with the first pump stroke and lift the pallet with the second. For loads above 150kg, the quicklift hydraulic system automatically switches to normal operation.
  • Toyota Heavy Lifter hand pallet jack for heavy duty applications which often require additional muscle. Lifting capacity up to 3,000kg.
  • Wide range of wheels for various applications.
  • Customised configurations and designs available on request.
  • Lasts five times longer than other brands.
  • 99 year functional guarantee on the fork frame and a 5 year guarantee on the pump unit - terms and conditions apply
  • Also known as hand pallet trucks and pallet movers.
  • Hand brake (optional) - Identical braking power on both steering wheels. Can be locked in parking position. Available as dead man's handle. Over load valve - Protects the hand pallet jack from being over loaded. Load support (optional) - To provide additional safety for load and operator.
  • Toyota hand pallet jacks represent the values of durability and simplicity, with real commercial and environmental benefits. Due to their proven long working life, providing typically five times the number of lifts compared with other types of pallet jack, they are today differentiated with the description 'Long-life hand pallet jacks'.
  • A large variety of wheel types: nylon, polyurethane, steel, vulkollan and rubber. Welded tow bar attachment provides high reliability. Powder coating and robot welding give a high and even finish. Hinged and foldable frame to raise the height of lowered fork.
  • Double ball bearings make lifting easy to control.
  • Enclosed handgrip design in high strength polymer provides operator comfort and hand protection.
  • 10 grease nipples with single fork wheel and 12 grease nipples with bogie fork wheel ensure a long service life. Floor conveyor and tow train system (optional) provides automatic and multiple transportation.
